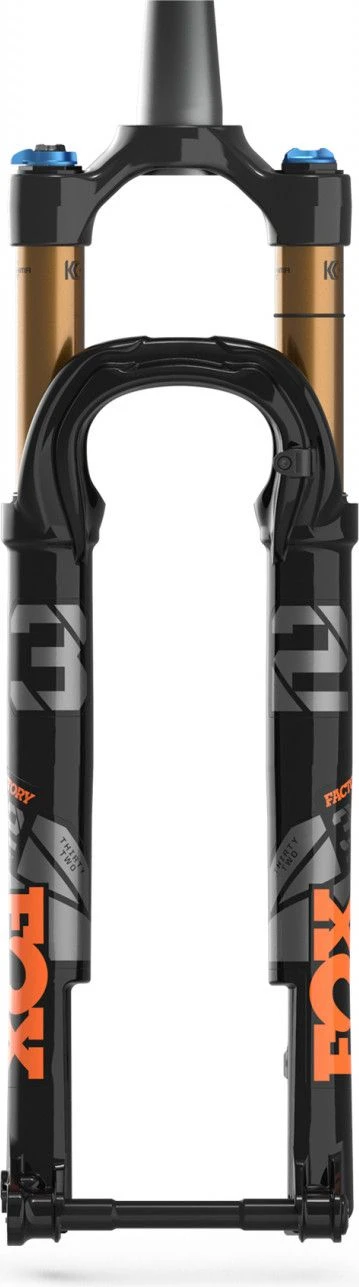

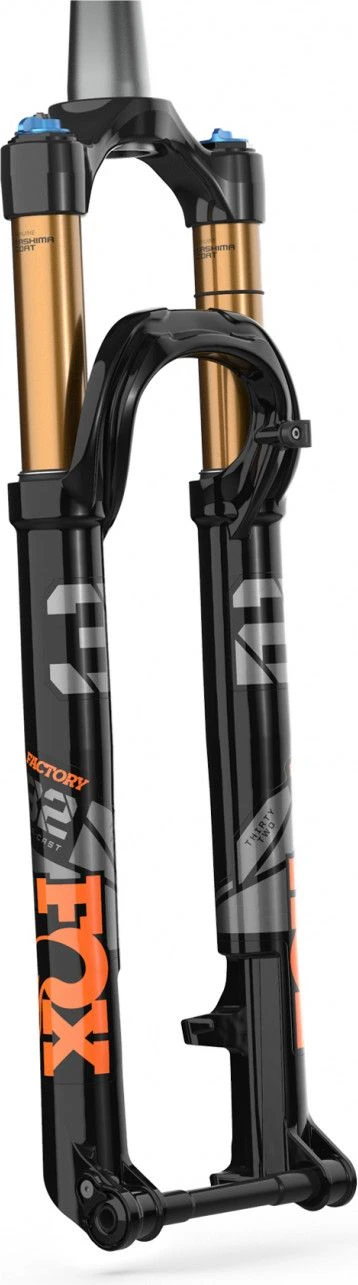

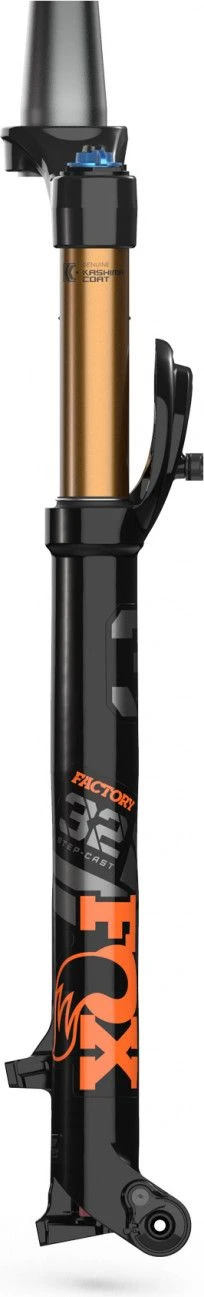

Fox Racing Shox 32 Float Factory SC 29'' Kabolt Fork | FIT4 3Pos-Adj | 15x100mm | Offset 44 | Black 2023

Fox Racing Shox 32 Float Factory SC 29'' Kabolt Fork | FIT4 3Pos-Adj | 15x100mm | Offset 44 | Black 2023 - Image 2

Fox Racing Shox 32 Float Factory SC 29'' Kabolt Fork | FIT4 3Pos-Adj | 15x100mm | Offset 44 | Black 2023 - Image 3

Fox Racing Shox 32 Float Factory SC 29'' Kabolt Fork | FIT4 3Pos-Adj | 15x100mm | Offset 44 | Black 2023 - Image 4

Fox Racing Shox 32 Float Factory SC 29'' Kabolt Fork | FIT4 3Pos-Adj | 15x100mm | Offset 44 | Black 2023 - Image 5

Fox Racing Shox 32 Float Factory SC 29'' Kabolt Fork | FIT4 3Pos-Adj | 15x100mm | Offset 44 | Black 2023 -MAXXIS Sales 205144560891e5779f6a3.24723052

Original price was: $316.00.Current price is: $99.99.

SKU: YWXSD 2051445 Categories: Forks, Frames, Frames, Suspensions Tag: Fox Racing Shox

Efficient and effective customer service, online.
Efficiency meets excellence in customer care.
The best quality products, always.
Unbeatable quality, unbeatable prices.

Adjust a fork

Maintain a fork

Here is the new Fox 32 Factory SC, used by international pilots, it represents the top of the Fox 32 range. In this version it offers a ”FIT4” cartridge equipped with a floating piston and a spring with three modes of compressions: Open / platform / closed.

But the evolution comes mainly from the ”SC” construction, this Step-Cast process is not only aesthetic, with this reduction in volume, it saves weight, space for the disc and the spokes and the use of tires up to 2.3 section.

Details :

Reinforced crown for increased rigidity.
Size: 29”
Step-Cast Jamb
Tapered steerer 1”1/8-1.5”
Axle: 15x100mm Kabolt (Black)
7000 series aluminum
Hydraulics: Fit4 cartridge
Spring: Air Float
Adjustments: 3 positions open/platform/closed.
Stanchions: 32mm
2 years warranty

Delivered with :

Hose guide.
Tokens

References :

910-20-223 / 32 Float SC 29″ Factory 100 FIT4 3Pos-Adj gloss black Kabolt 100 tapered 44mm offset 2022

Kabolt axis:

40g lighter than Fox quick-release axle (54% lighter)
Installation with a 6 mm hex wrench

32 Step-Cast Chassis

The particular shape of the lower crown does not only have an aesthetic effect. The narrow stance of the 32 Step-Cast (SC) chassis saves weight, and the stepped design leaves room for the spokes and brake rotor. The 32 SC chassis, equipped with 32 mm upper tubes, has a significant overlap of the bushings for quality steering; hollowed-out lower arms save even more weight.

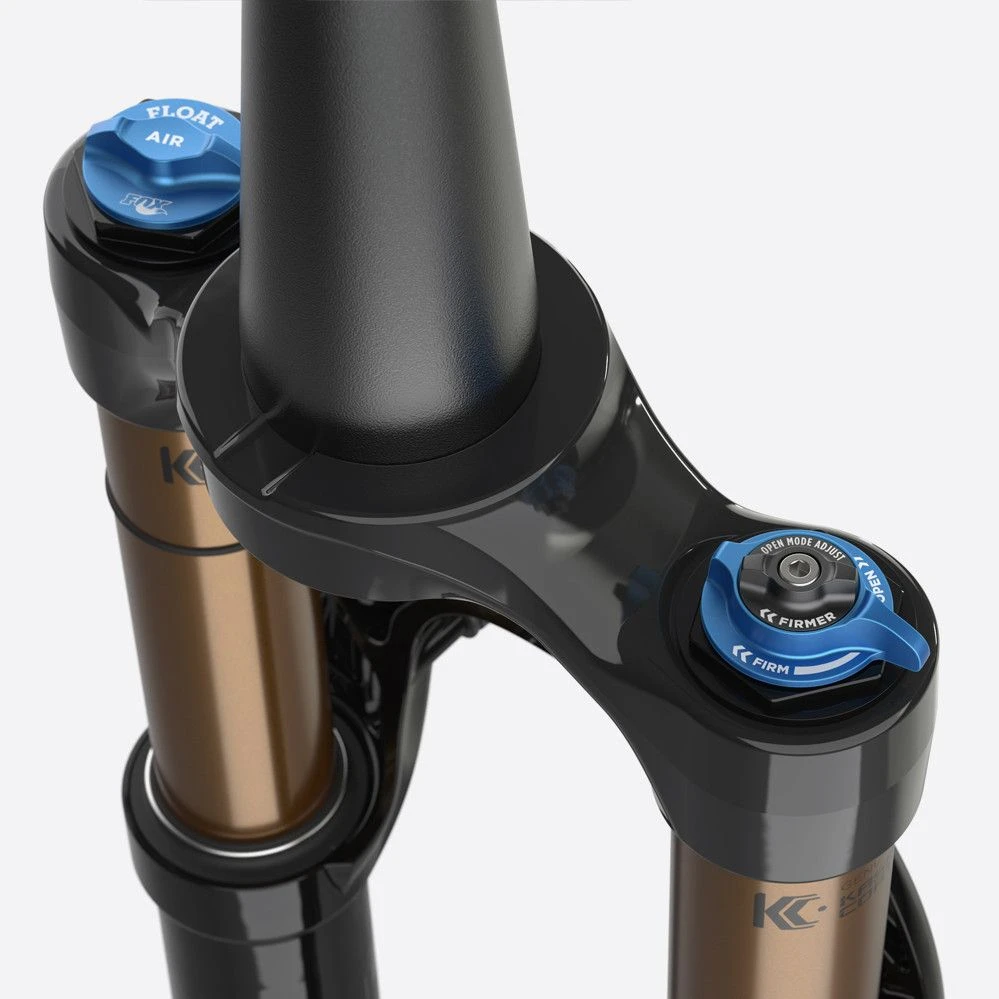

Fit4 cartridge:

As the fourth generation, our patented FIT4 (FOX Isolated Technology) sealed cartridge system allows three instantaneous positions for compression damping (open, medium and firm) to adapt to the different conditions encountered on the trails. The Factory Series forks also feature 22 clicks of low-speed compression adjustment in open mode to allow riders to fine-tune damping.

The FIT4 cartridge has been redesigned, taking inspiration from the HSC/LSC model, acclaimed on many occasions, in order to improve damping whatever the fork. This year, the FIT4 damper features a new setting that provides improved sensitivity while maintaining support.

Float Damping:

The FLOAT air shock developed for the 32, 34 and 40 forks is lighter and reduces the force needed to trigger. It offers excellent small bump sensitivity regardless of rider and pressure setting.

Similar to our FLOAT shocks, the new FLOAT system features negative and positive chambers that self-balance. This provides appropriate pressure for every mountain biker. The progressiveness of the damping curve is adjustable by means of spacers for the air volume so that mountain bikers fine-tune the behavior of the air shock.
